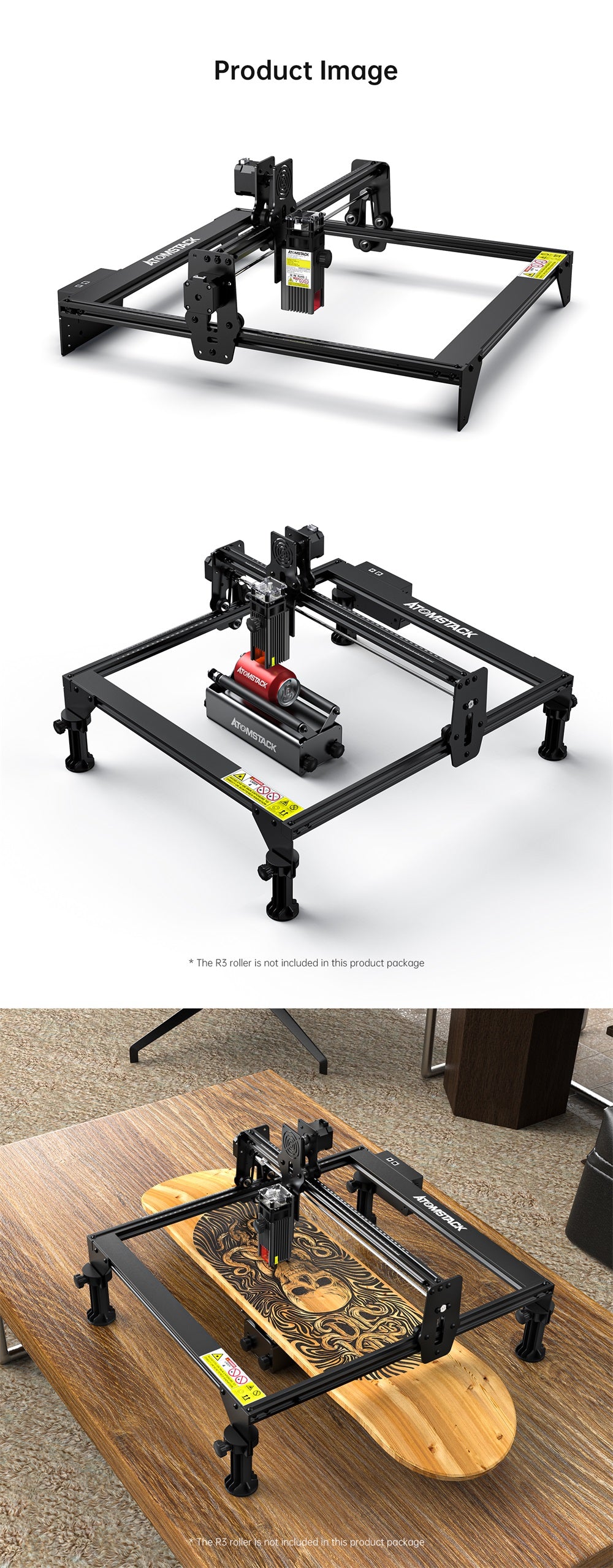

ATOMSTACK A5 M40 40W Laser Engraving Machine

Home / Atezr Laser Engravers / ATOMSTACK A5 M40 40W Laser Engraving Machine

✪ A5 M40 is an upgraded version of 40W, with compressed spot technology.

✪ A5 M40 is currently in stock in the US and European warehouses and can be shipped immediately with free shipping and duty-free.

Quantity

ADD TO CART

BUY IT NOW

Detail

Video Introduction

Main Features:

1. New eye protection design: The laser protective cover perfectly protects your eyes, filters UV light for 97%. You and the people around can watch laser engraving without wearing goggles. Reduce the cost of your goggles and the inconvenience of wearing goggles.

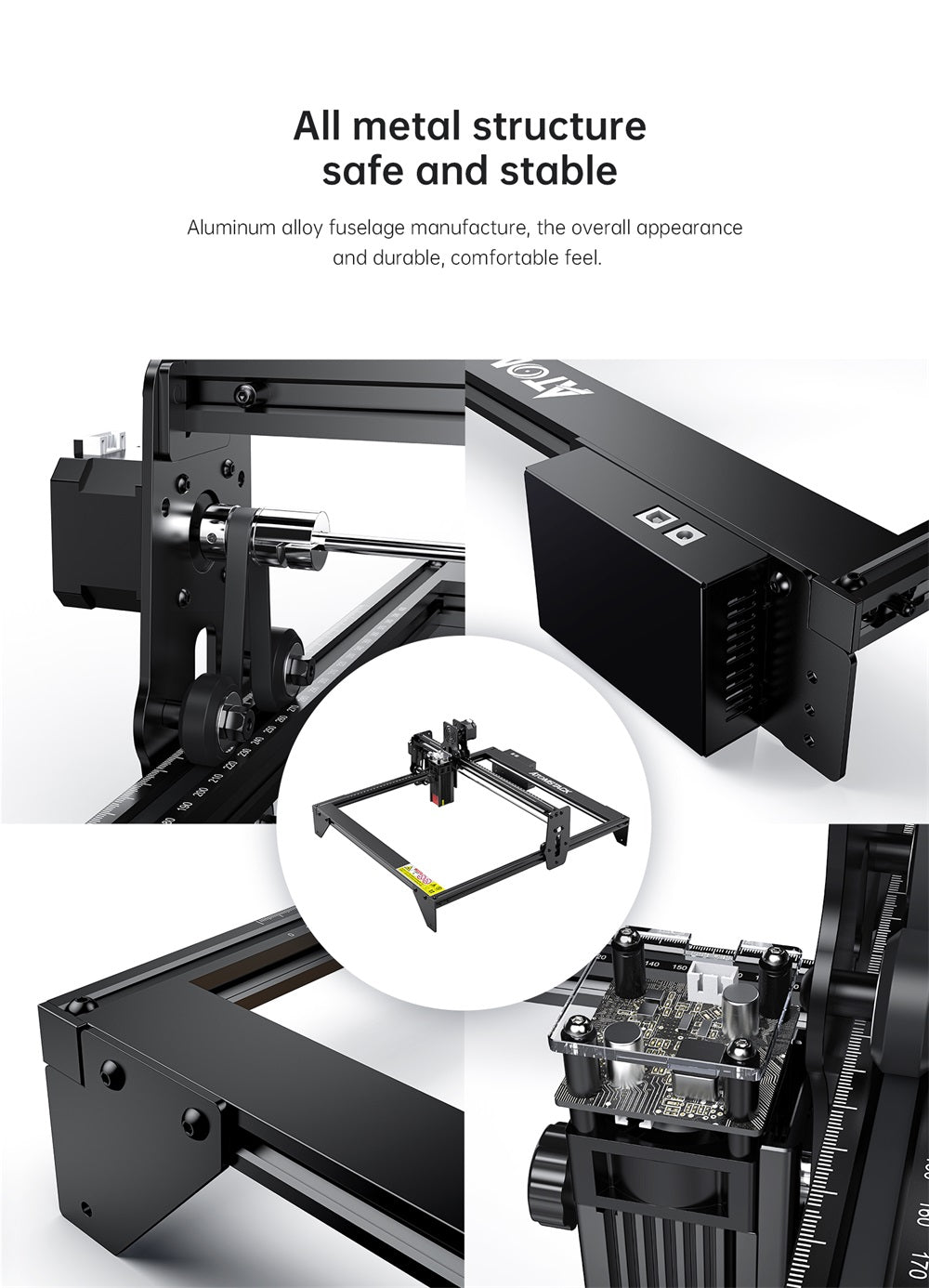

2. Solid and easy installation structure design: The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

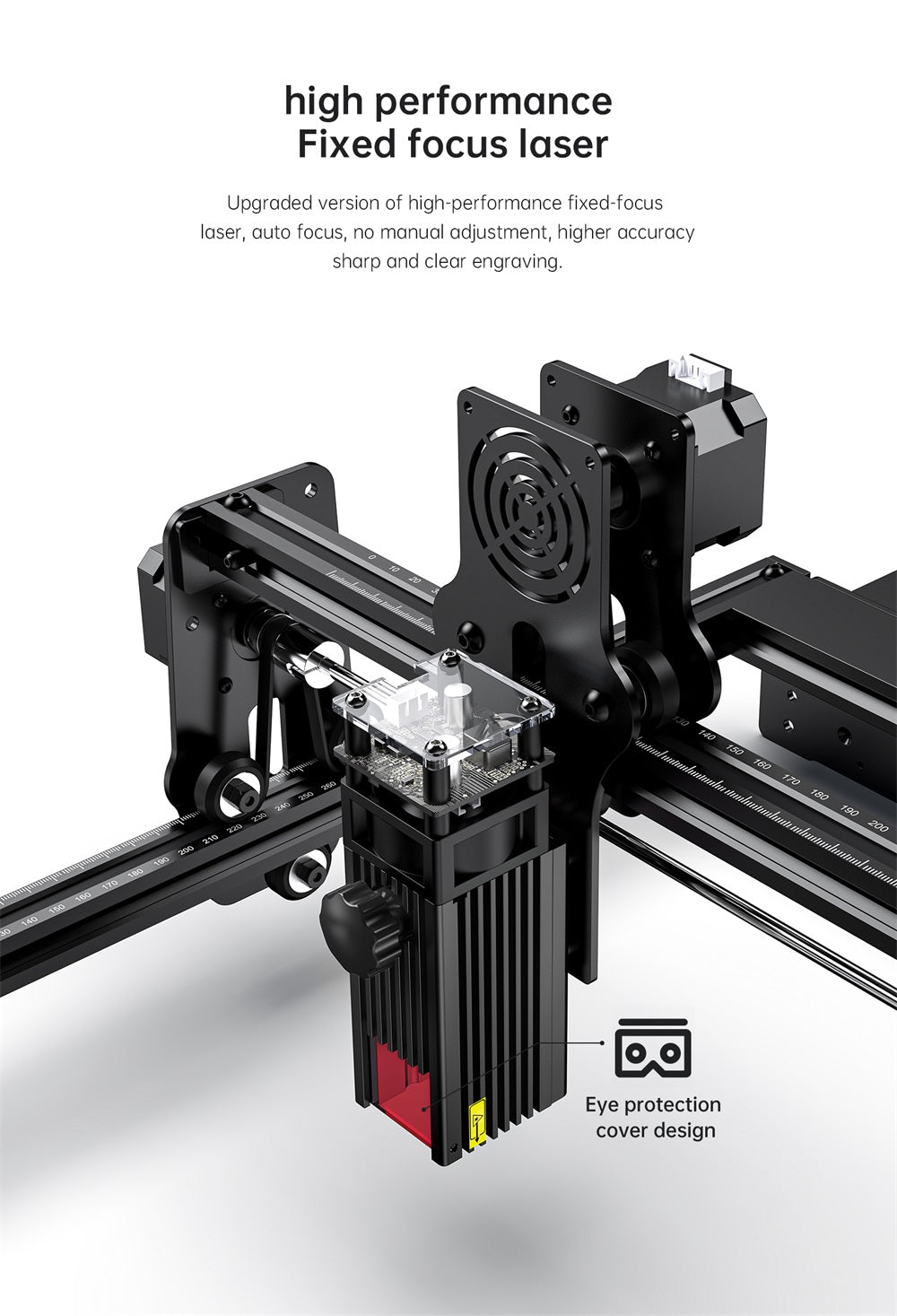

3. Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving; The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
4. Wide compatibility: The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support IOS system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF, etc.

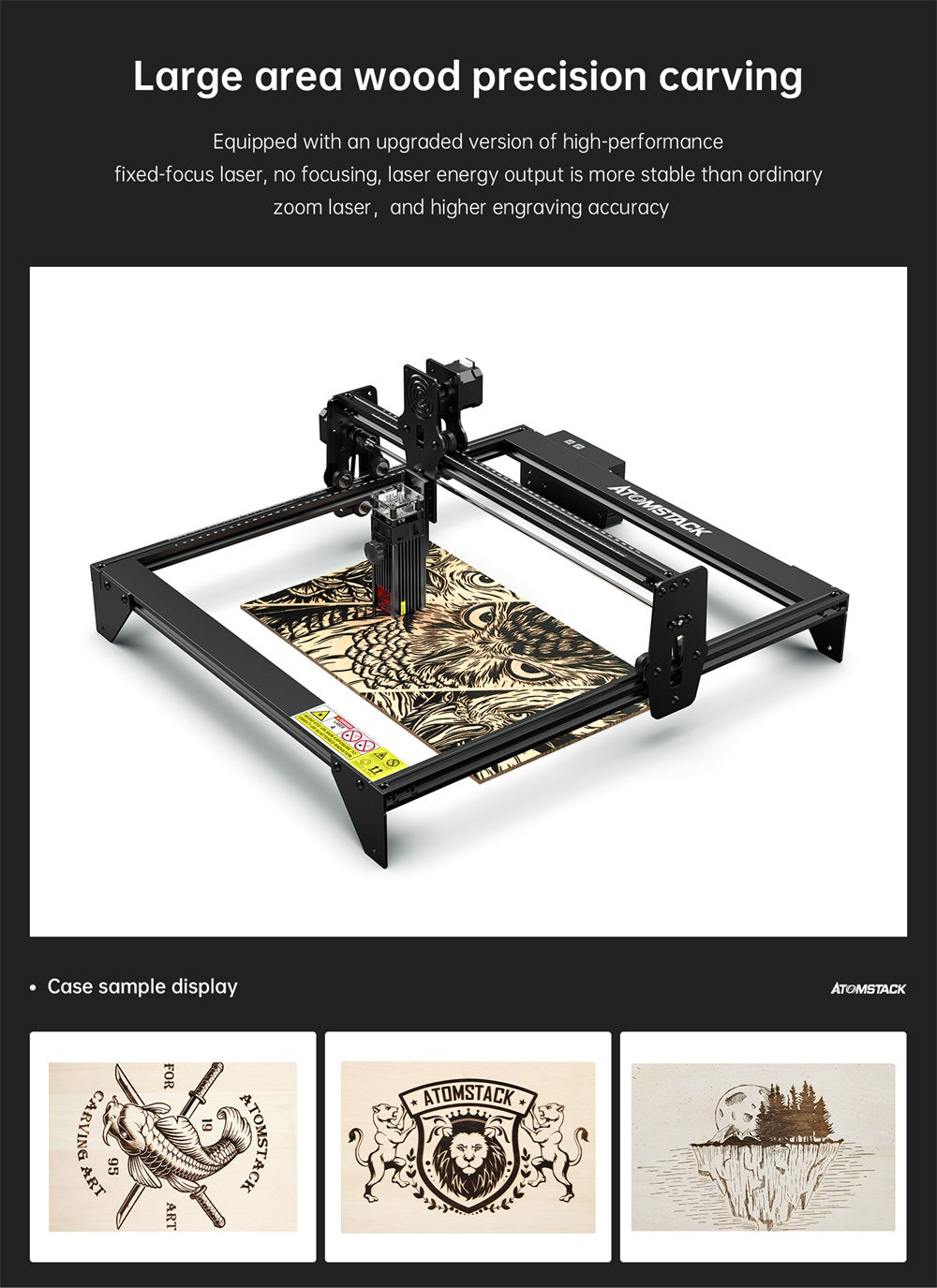

5. Precise scale lines axis: There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

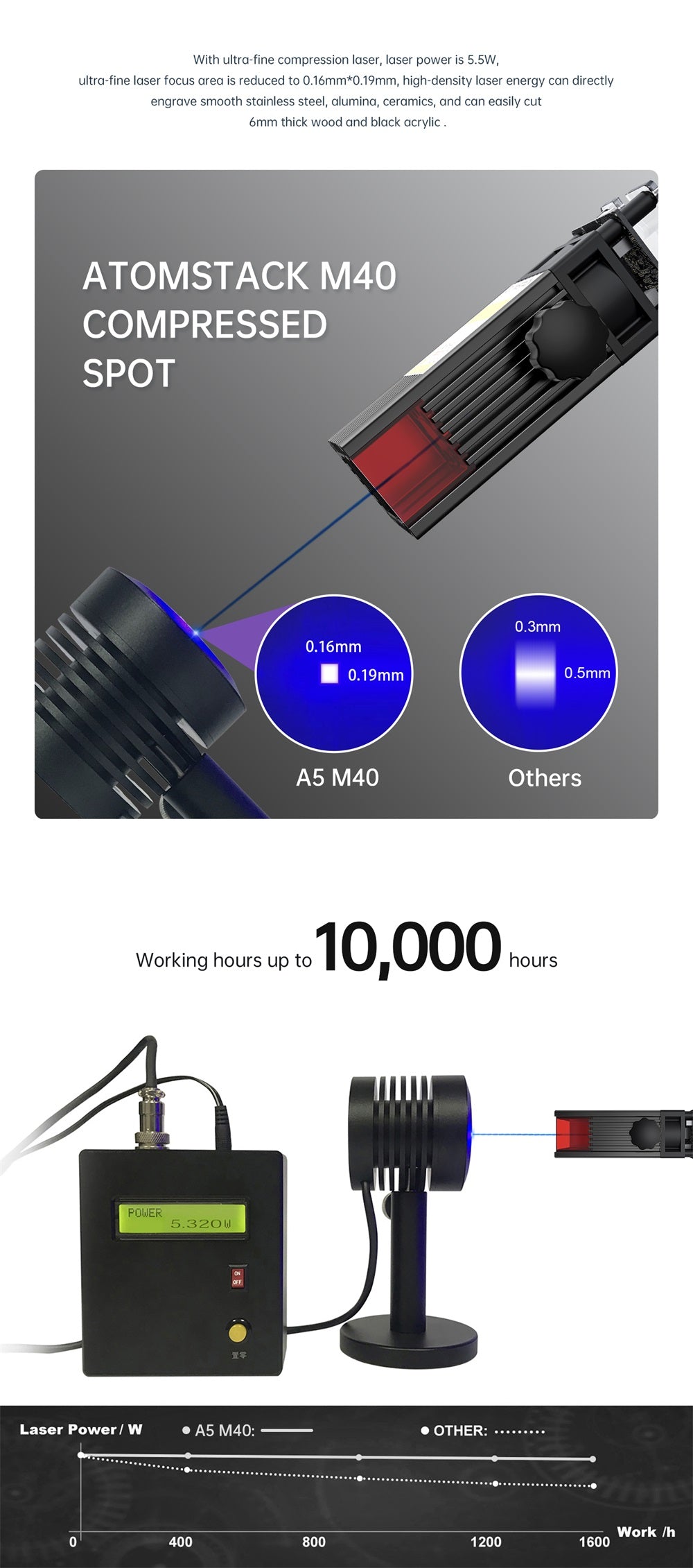

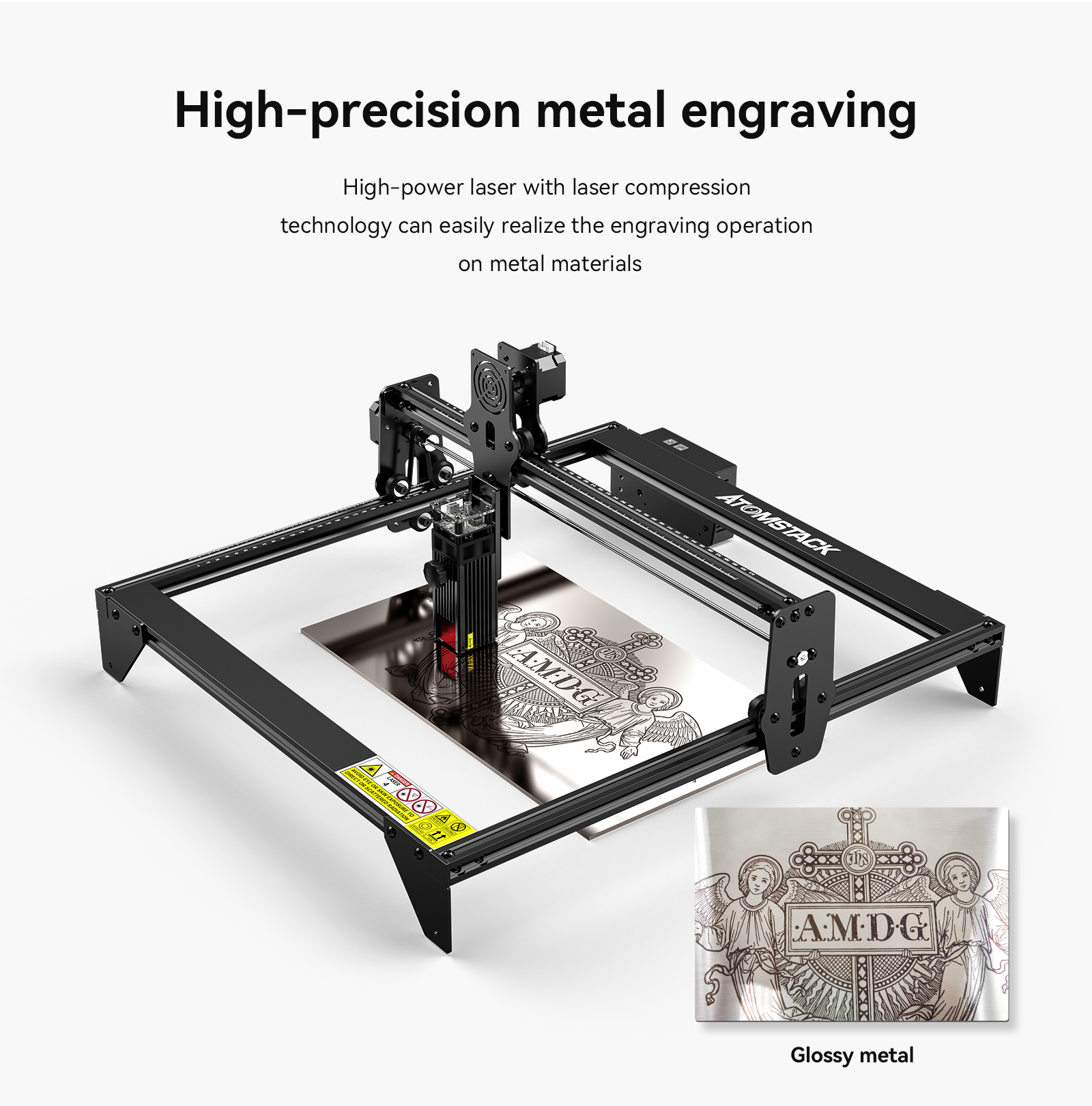

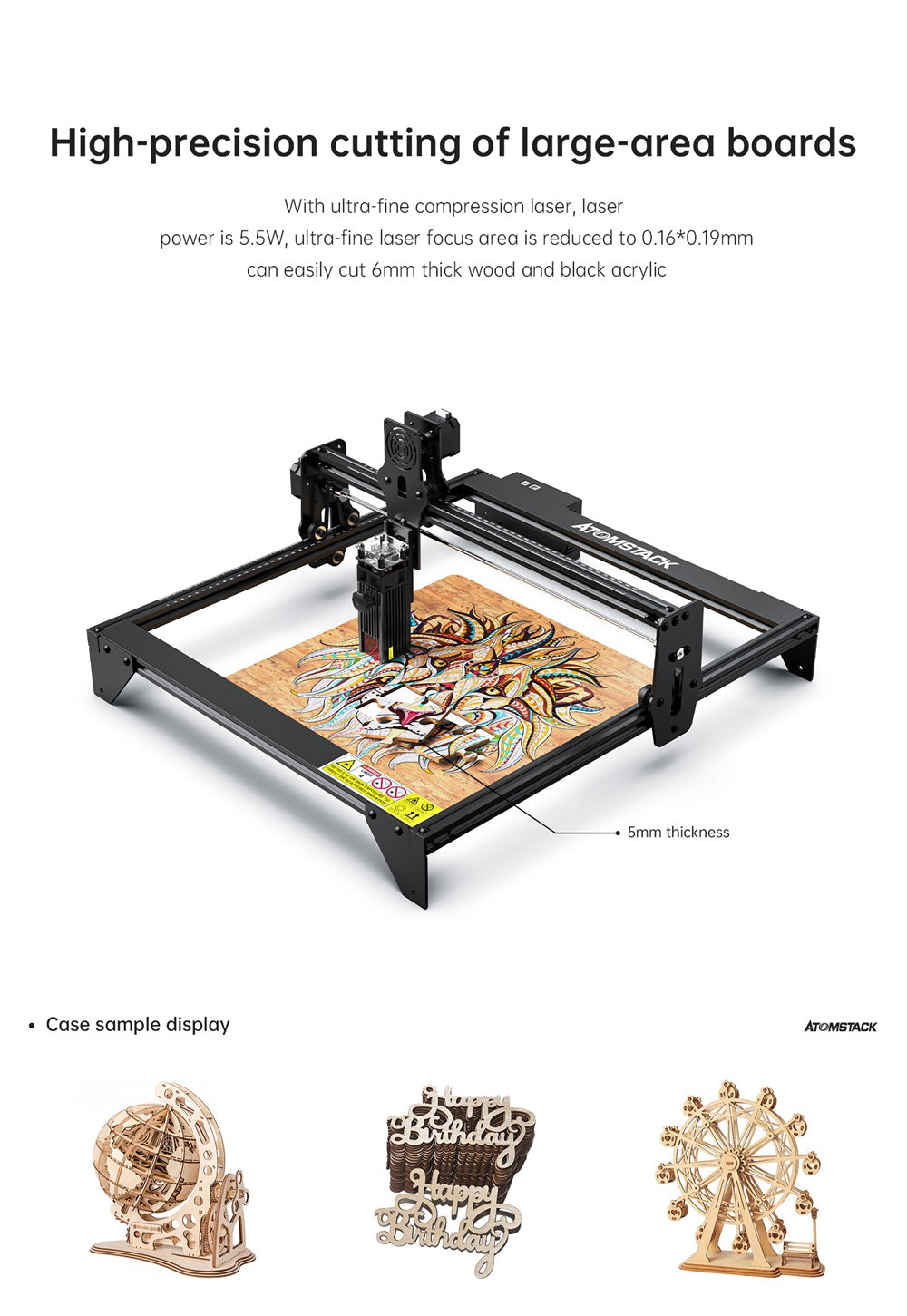

6. Ultra-fine compression laser: The laser power is 5~5.5W, and the ultra-fine laser focus area is reduced to 0.16*0.19mm. The high-density laser can easily cut 6mm thick wood and black acrylic; it can directly engrave smooth stainless steel metal and ceramics.

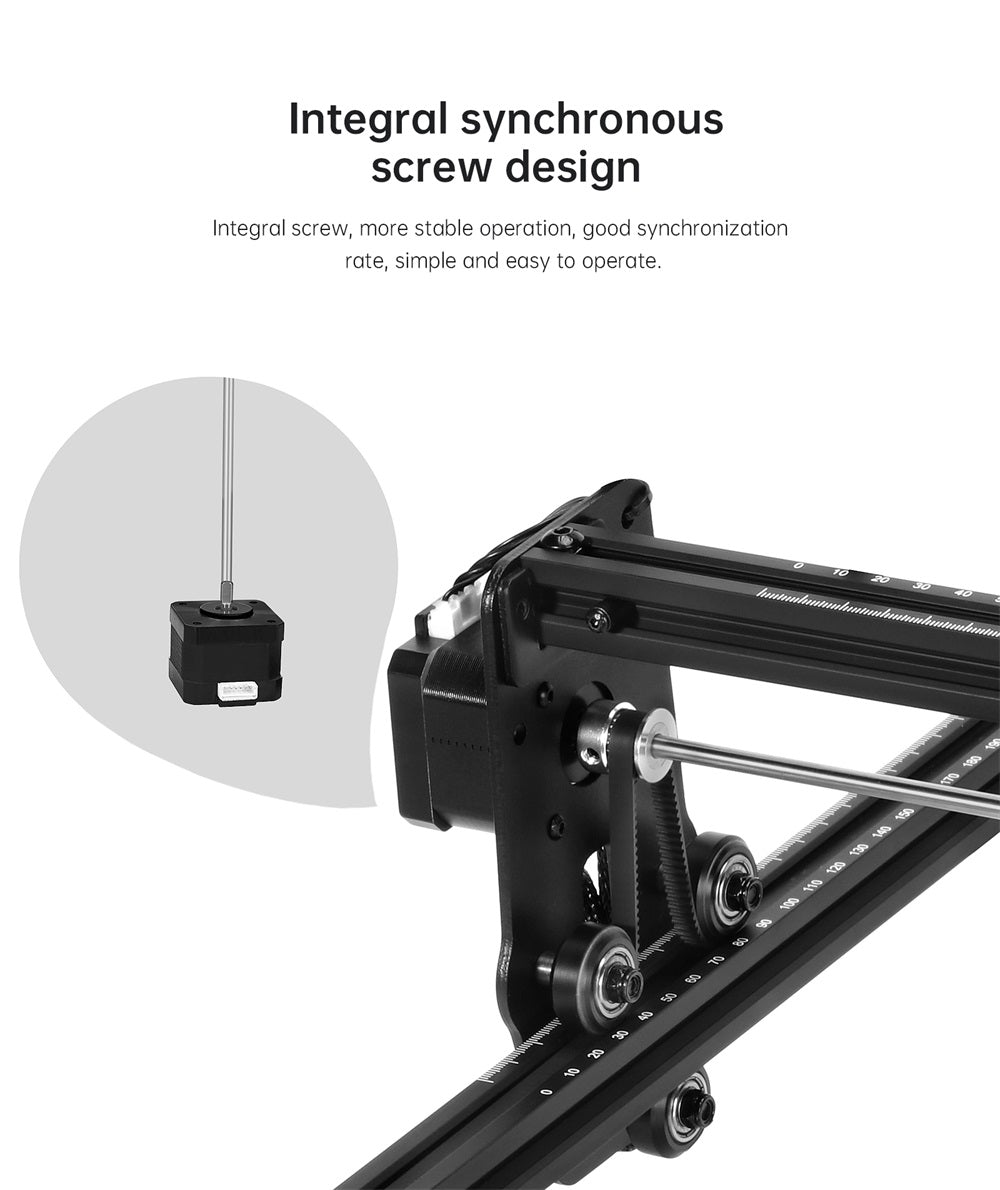

7. Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.

8. New laser with knob: It is more convenient and quick to adjust the height of the laser.

The difference between Atomstack A5 M40 and A5 Pro:

	A5 M40	A5 Pro
Electric Power	40W	40W
Optical Power	5-5.5W	5-5.5W
Laser Wavelength	455±5nm	455±5nm

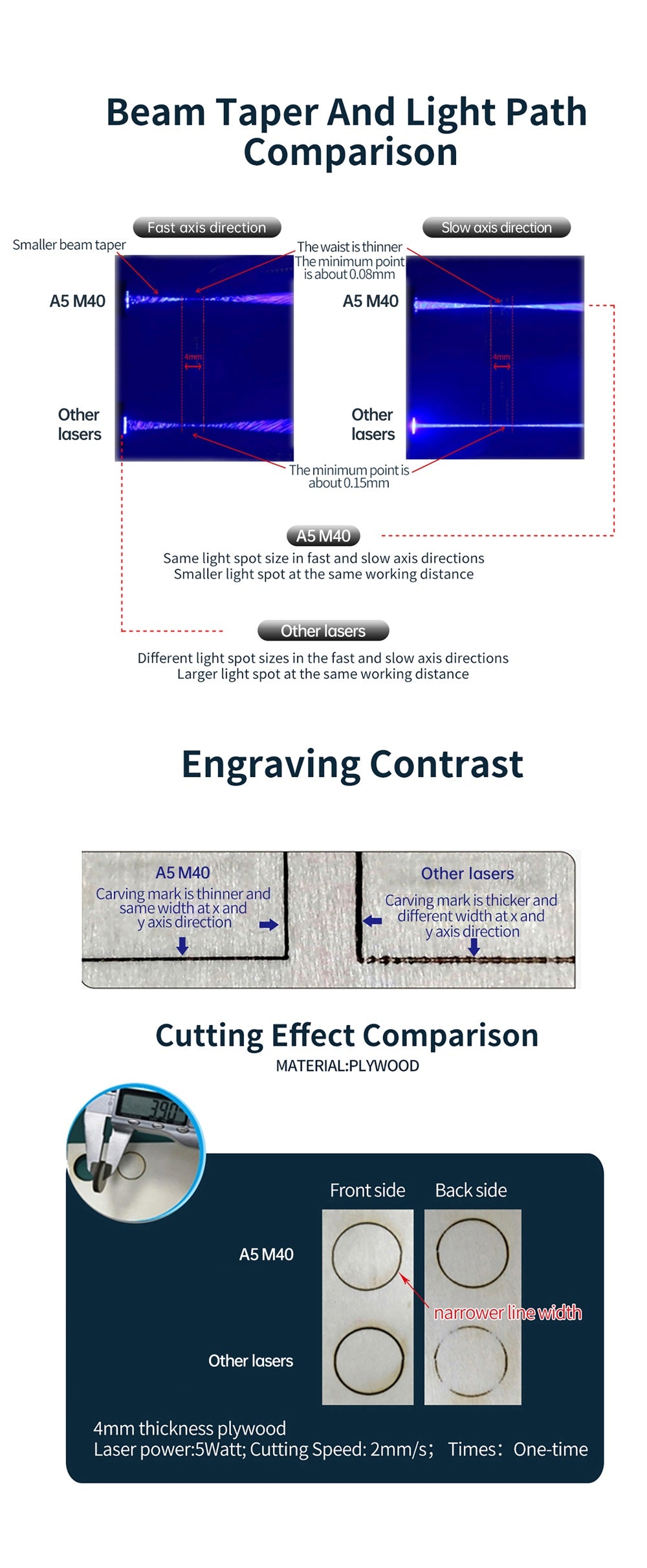

Laser Spot	Compressed spot 0.08mm	Compressed spot 0.08mm
Full-metal Structure	Yes	Yes
Height Adjustment	Manual knob	Hex wrench
Switch Cable Line	Yes	No
Engraving Objects	Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal, blackened utility knife, 304 mirror stainless steel, matte stainless steel, ceramic, acrylic.	Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal, blackened utility knife, 304 mirror stainless steel, matte stainless steel, ceramic, acrylic.
Cutting Objects	Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.	Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.
Cutting Ability	Strong	Strong

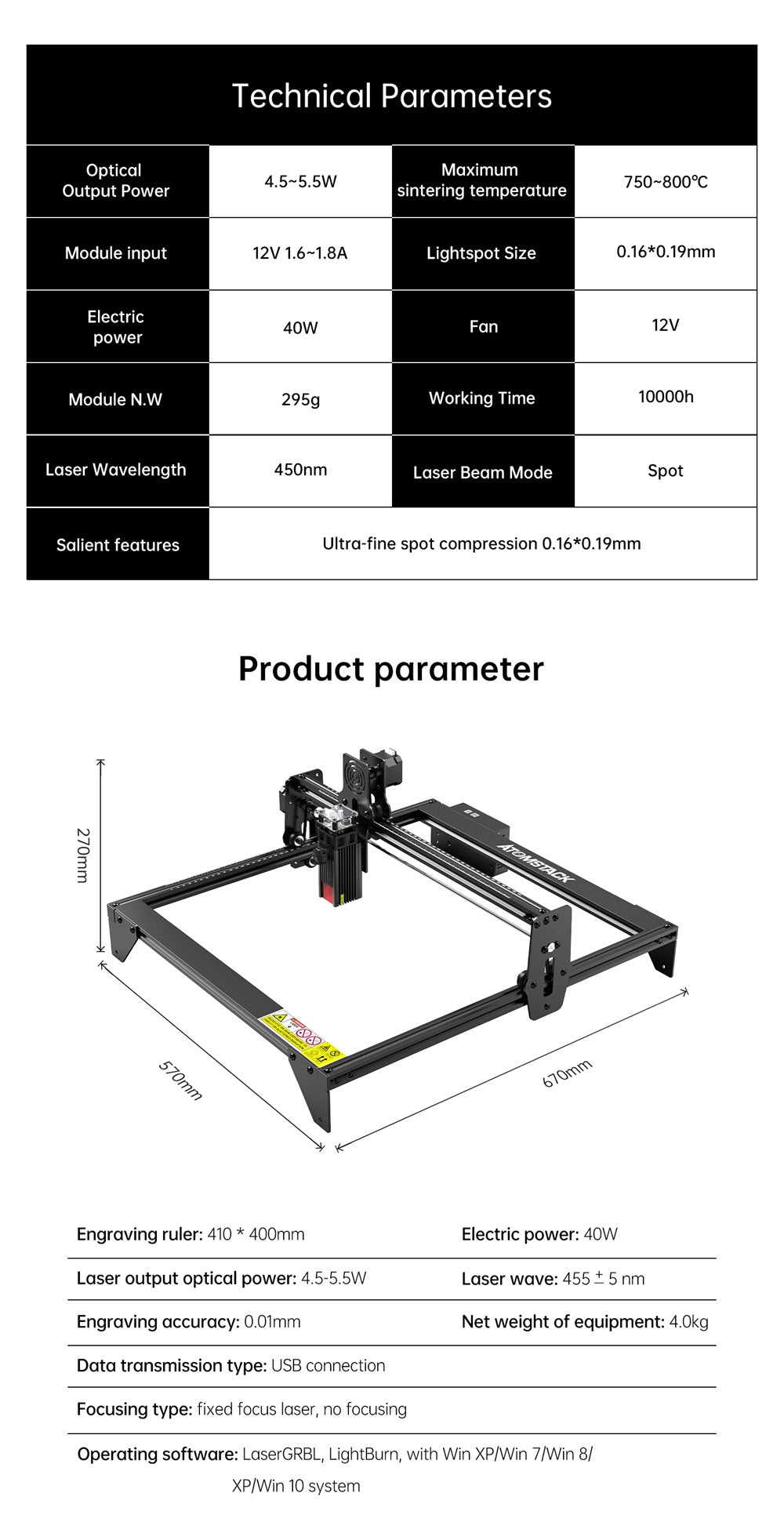

Product Parameters:

Item model number	ATOMSTACK A5 M40
Print Size	410*400 mm
Carving Objects	All wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal, Utility knife after blacking
Cutting Objects	Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.
Laser power	40W
Laser output power	5-5.5W
Wave Length	445 ± 5nm
Engraving accuracy	0.01mm
Focusing method	Fixed focus laser, no need to focus
Laser protective cover	Protect the user's eyes and prevent pets from grabbing the laser spot.
Operating software	LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
Input Format	NC, BMP, JPG, PNG, DXF, etc.
Data transmission method	USB connection.
Input Voltage	AC100-240V, 50/60Hz
Output Voltage	DC12V, 5A
Equipment net weight	3.426kg
Package weight	5.072kg
Equipment size	570600270mm
Packing size	620345130mm
Certification	CE FCC RoHS FDA

More Details:

Note:

● When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
● Please do not touch the laser emitter with your hand, or it may burn your hand.
● Please avoid a strong impact on the machine.
● Children under 14 are not allowed to use this product and children over 14 need adult supervision.
● The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.

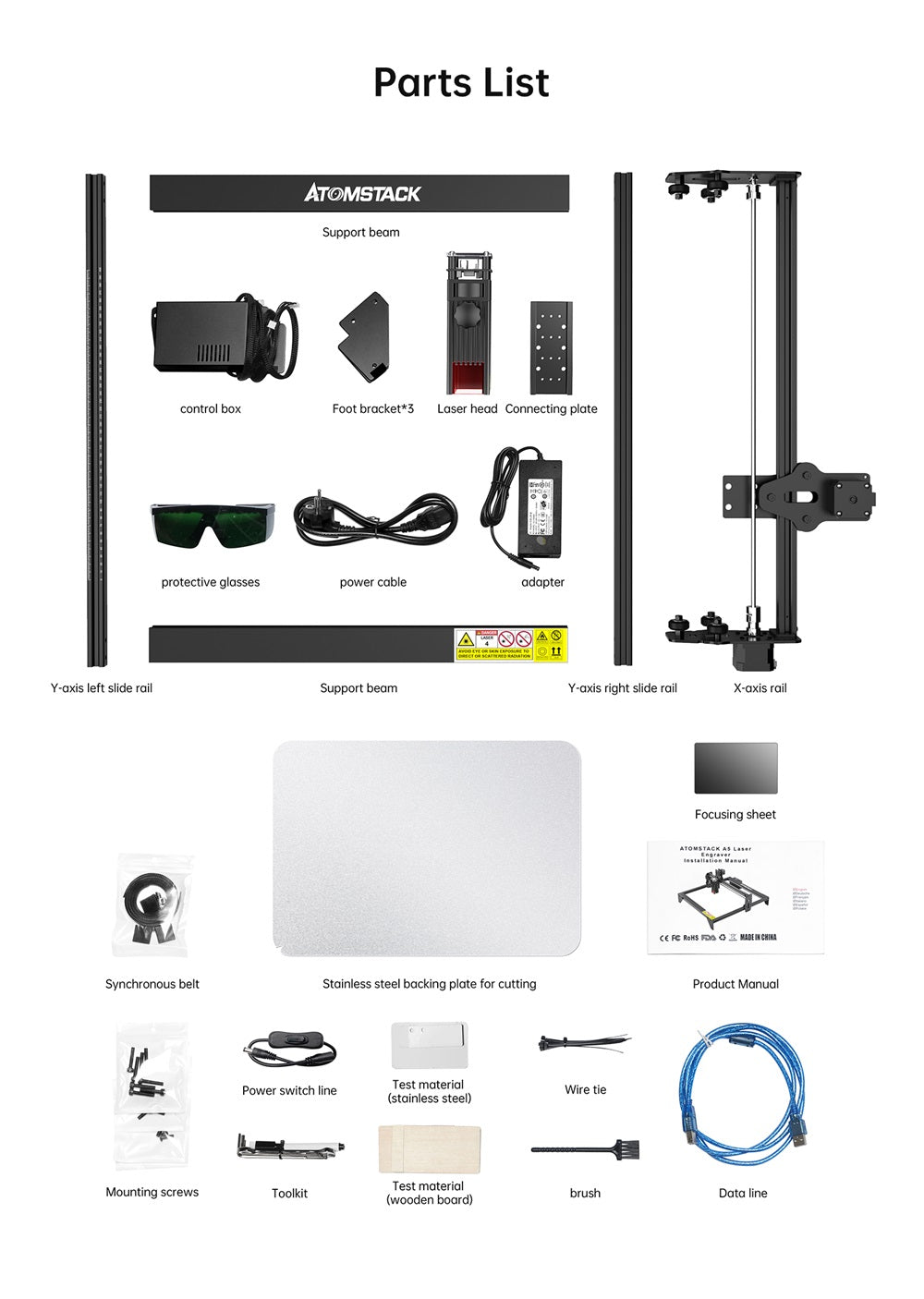

A5 LASER ENGRAVER PACKAGE:

1* X-axis assembly
2* Section 57CM
2* Section 48CM
1* Control box
3* Support legs
1* Goggles
1* Laser
1* 24V2A power adapter
1* Power switch line
1* USB cable

Step 1~5 installation package

1* M5 wrench
10* Rolled belt
3* Small wood
1* Focal length film
1* M3 wrench
1* Marker
1* Brush
3* Small acrylic
1* Stainless steel backing plate for cutting
