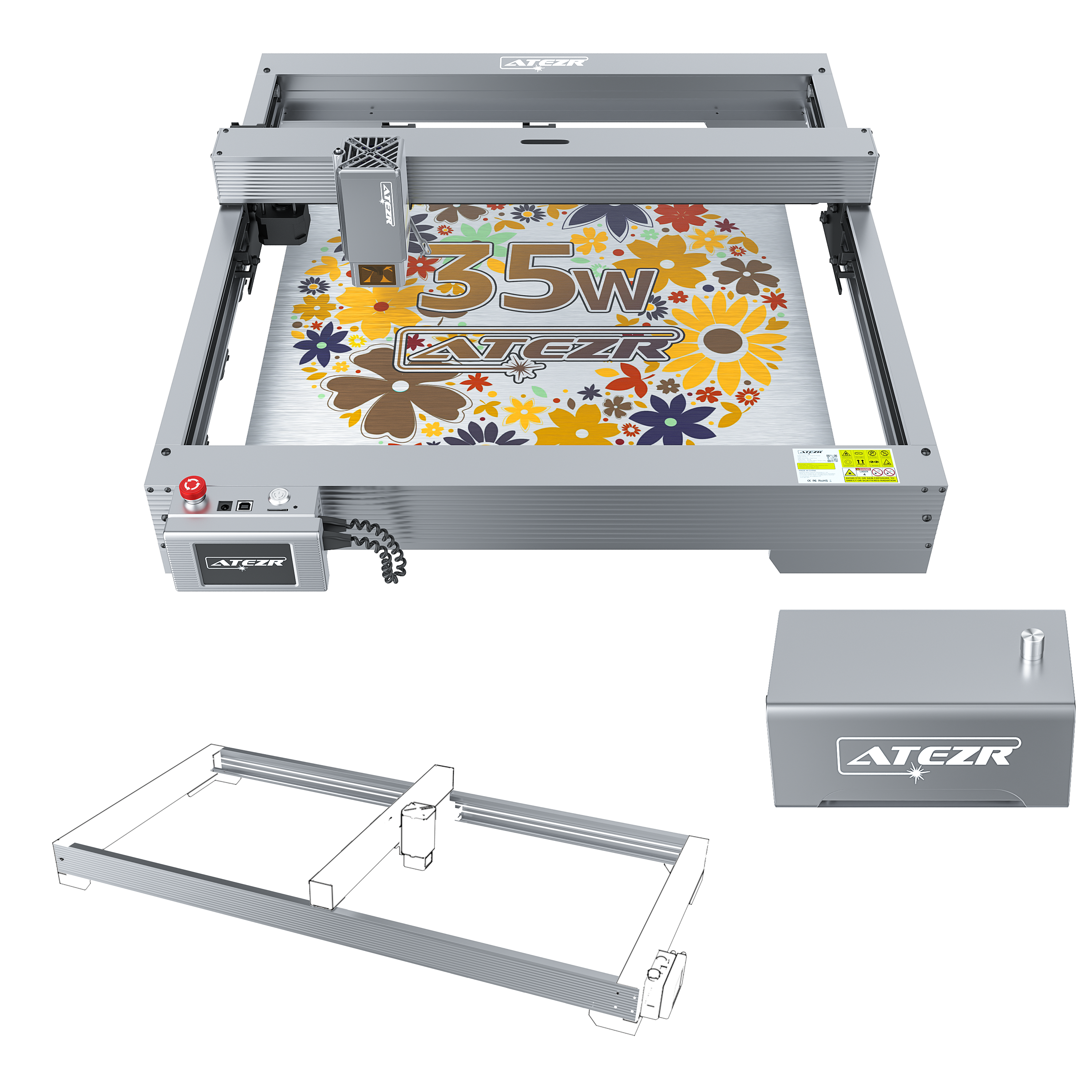

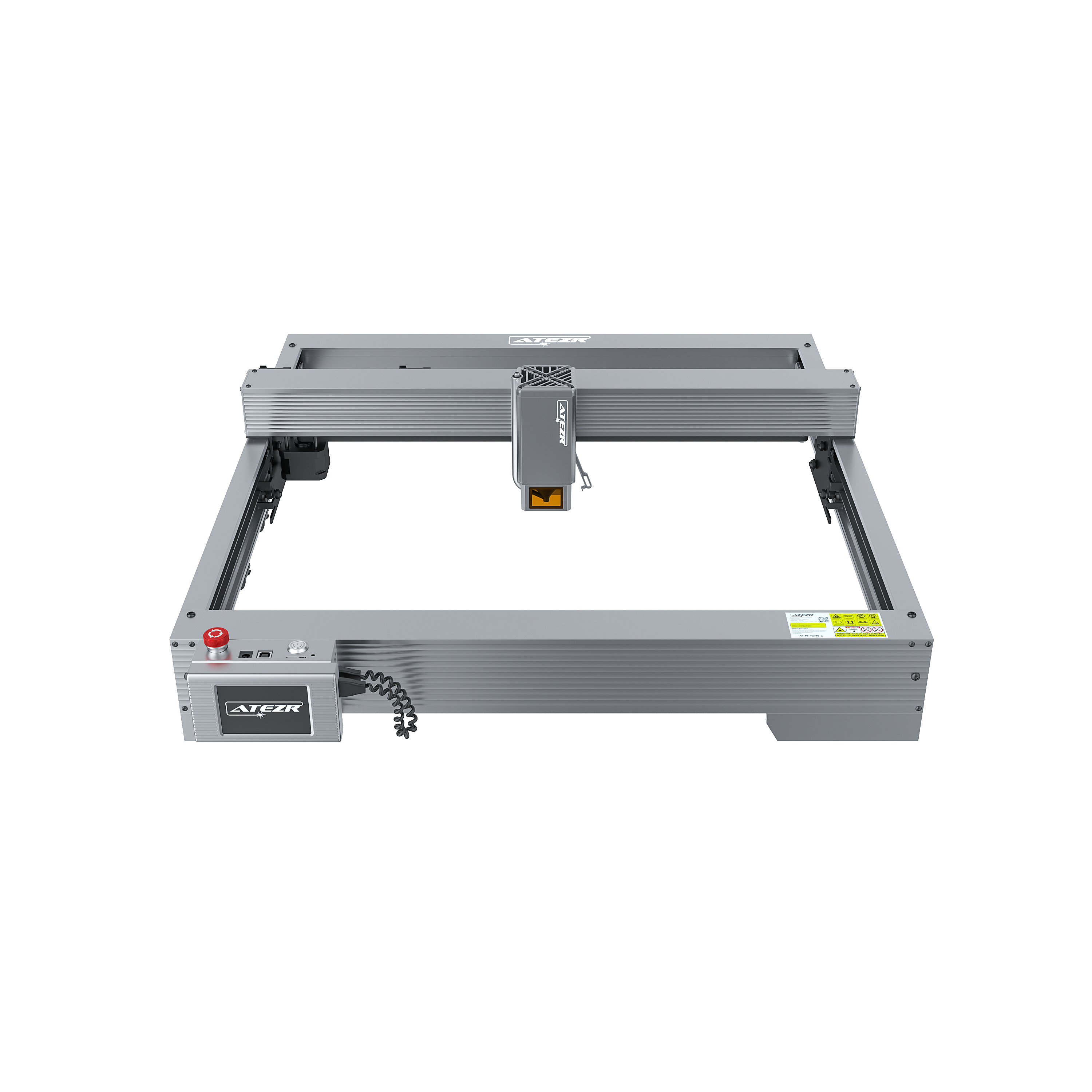

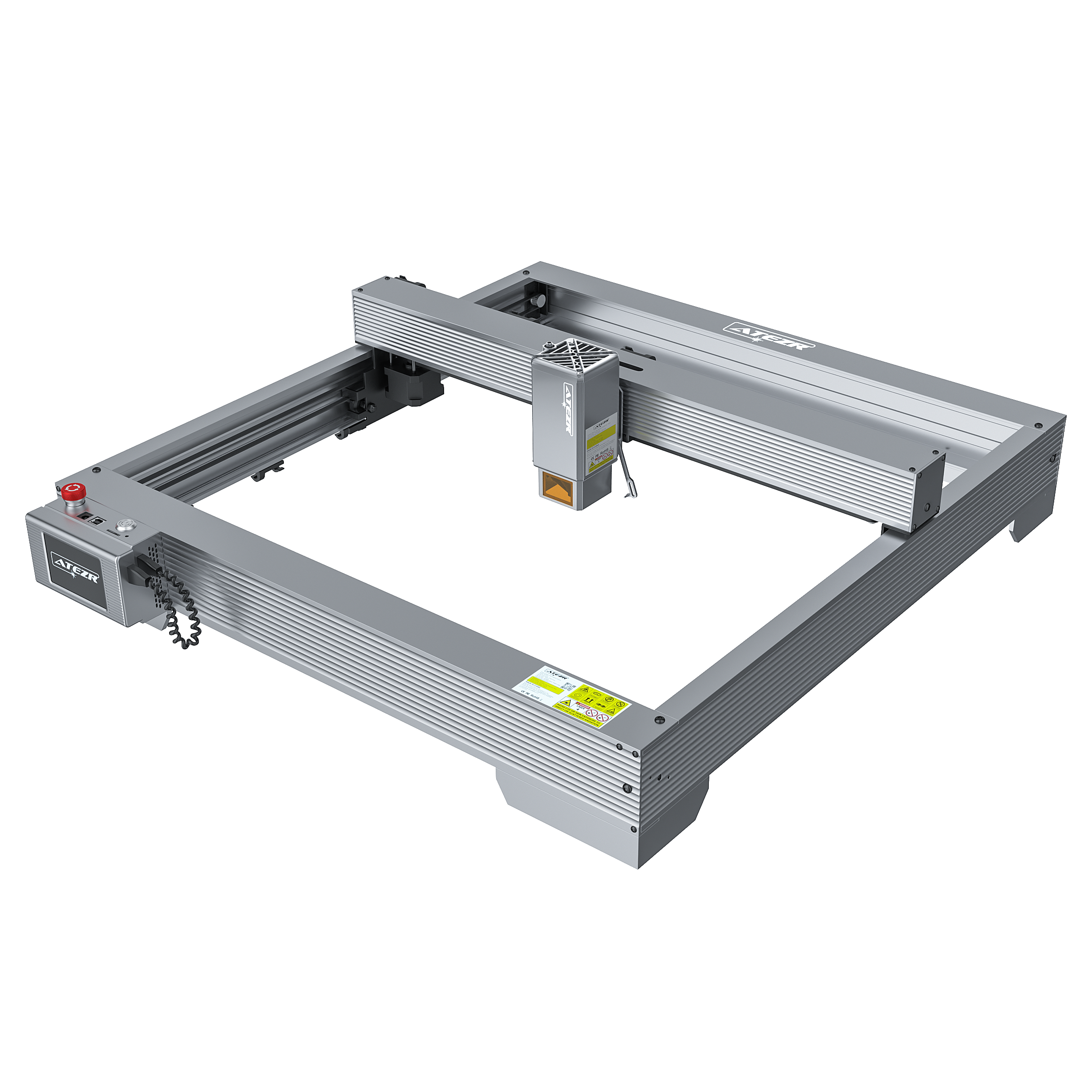

Atezr V35 PLUS 35W Laser Engraver with KA and KE Set [Pre-Sale]

Home / Atezr V35 PLUS 35W Laser Engraver with KA and KE Set

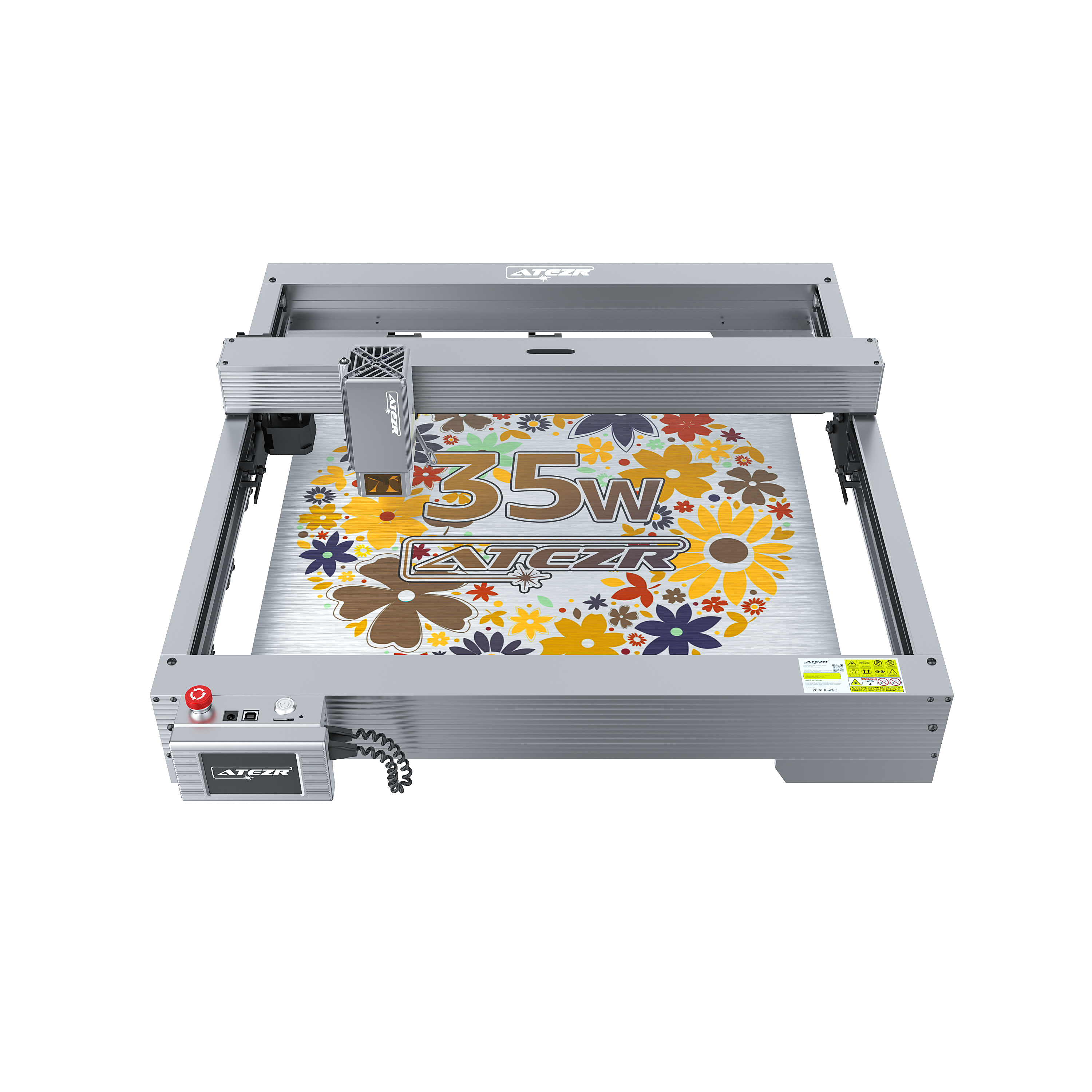

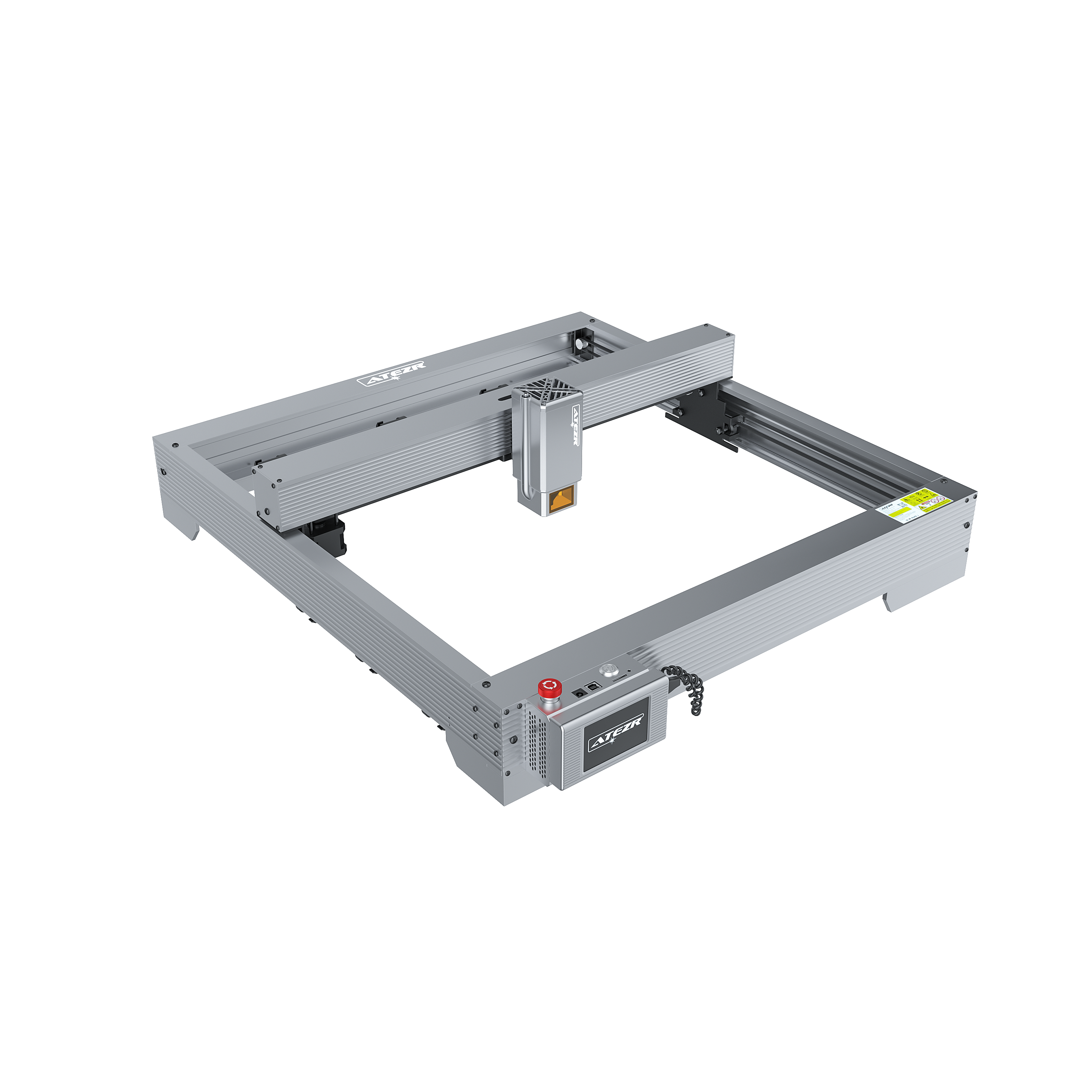

Atezr V35 PLUS 35W Laser Engraver with KA and KE Set

Name: Atezr V35 PLUS 35W Laser Engraver with KA and KE Set
Brand: ATEZR
SKU: US01+CBD180564_US
Price: 1499 USD
Availability: InStock
Rating: 5 (7 reviews)

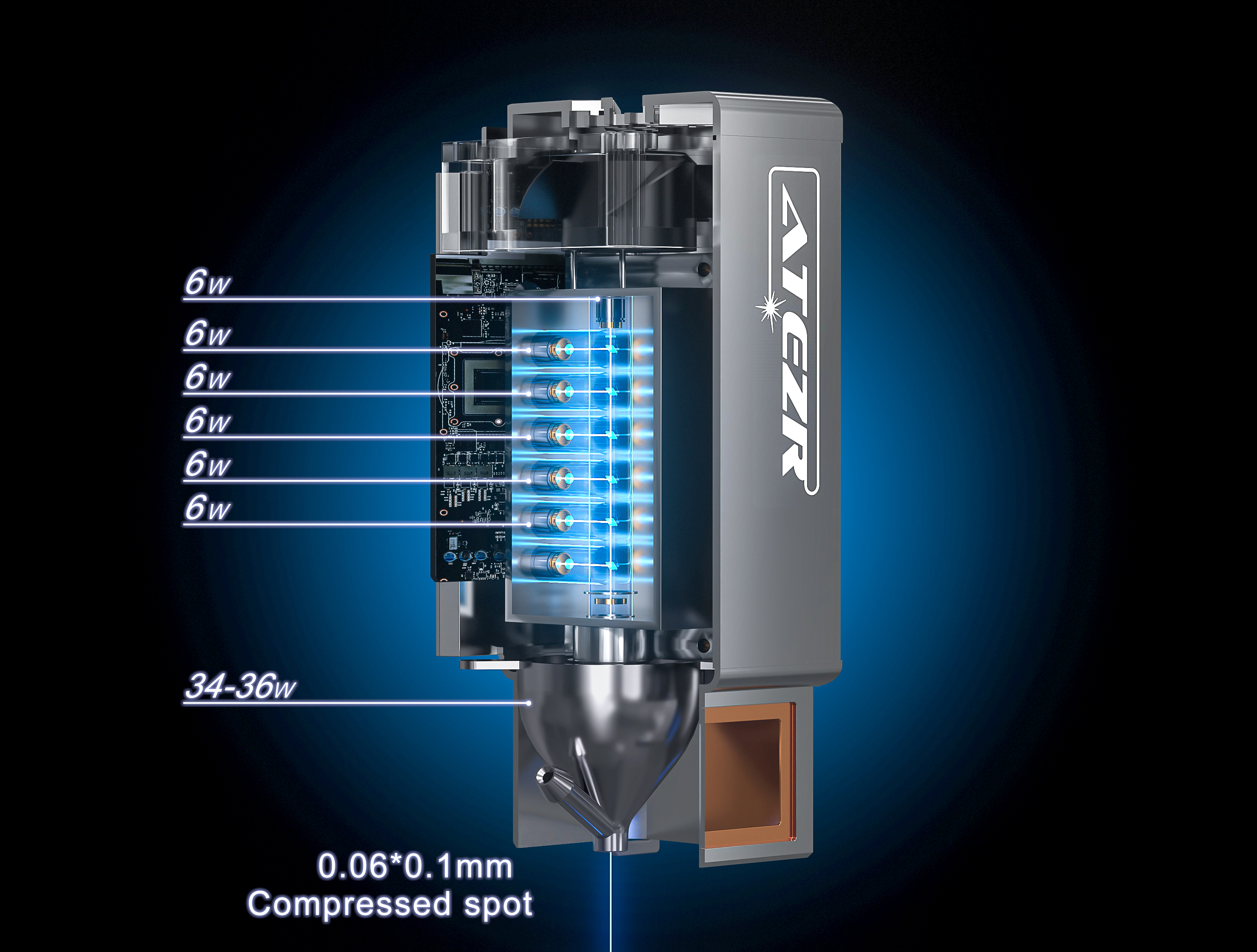

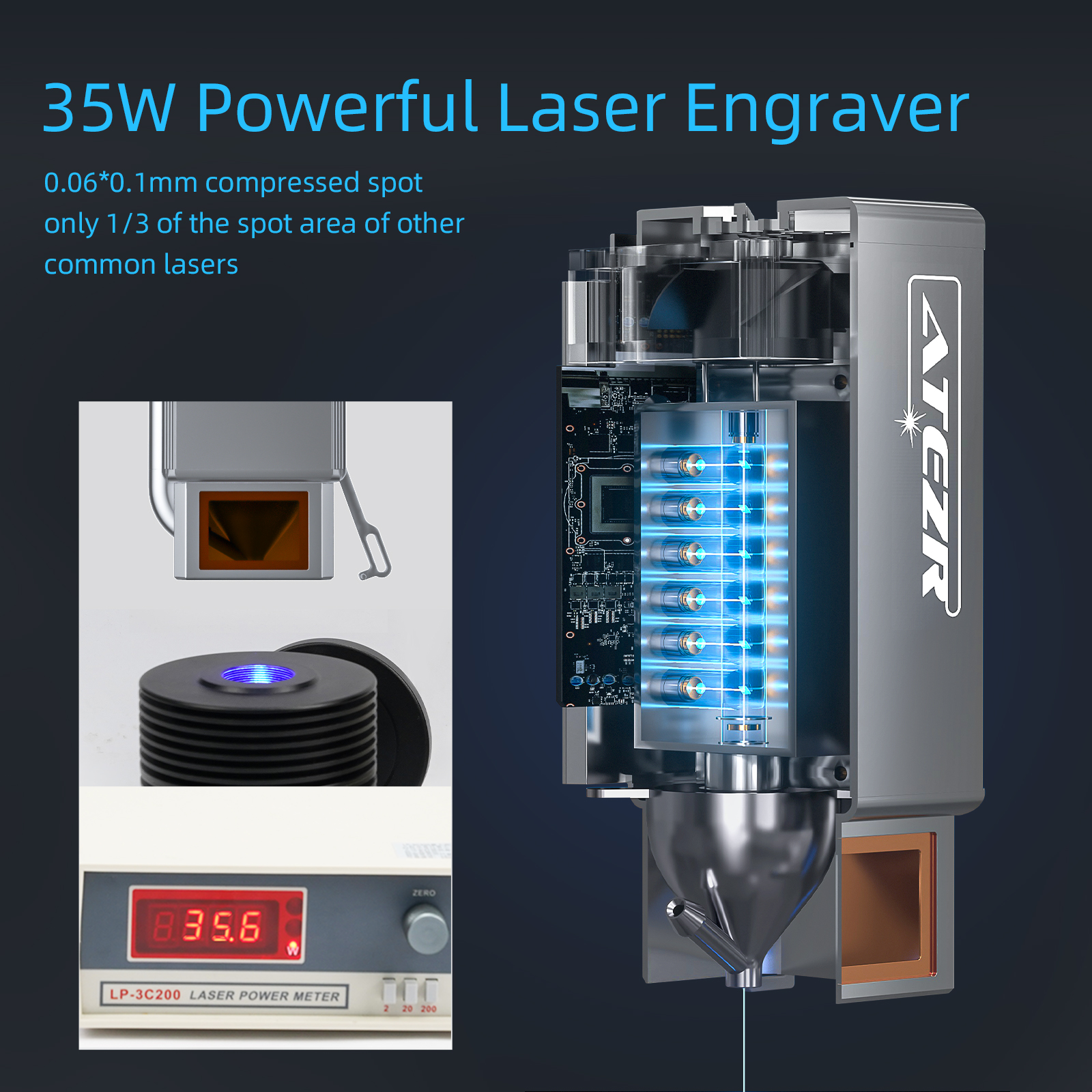

🔥 $200 OFF, Enjoy your high-powered 35W laser engraver! 🎁 Free Air Assist (Value $129.99) and Extension Kit (Value $179.99) ✅ Powerful and Precise: With 34-36w power and advanced laser coupling technology ✅ Detailed and Intricate: Compressed spot size of only 0.06*0.1mm -1/3 of the spot area of others ✅ Powerful Cutting: Cut 18-22mm paulownia board, 12mm black acrylic board

$1,499.00 USD

Please pay attention to the choice of specifications(US Plug/EU Plug). If you choose the wrong specification, it will not be shipped successfully.

V35 PLUS 35W laser engraver Material Setting

Material	Method	Speed (mm/min)	Power (%)	Pass	Reference Picture
6mm poplar plywood	Cutting	500	100	1
18.5mm Spurce wood	Cutting	120	100	1
28.5mm Spurce wood	Cutting	120	100	2
35.5mm Spurce wood	Cutting	60	100	2
Slate	Engraving	12000	80	1
Stainless Steel	Engraving	5000	100	1
Plywood	Engraving	15000	80	1

Specs

Tech Specs

Model

Atezr V35 PLUS

Engraving Size

430mm*430mm

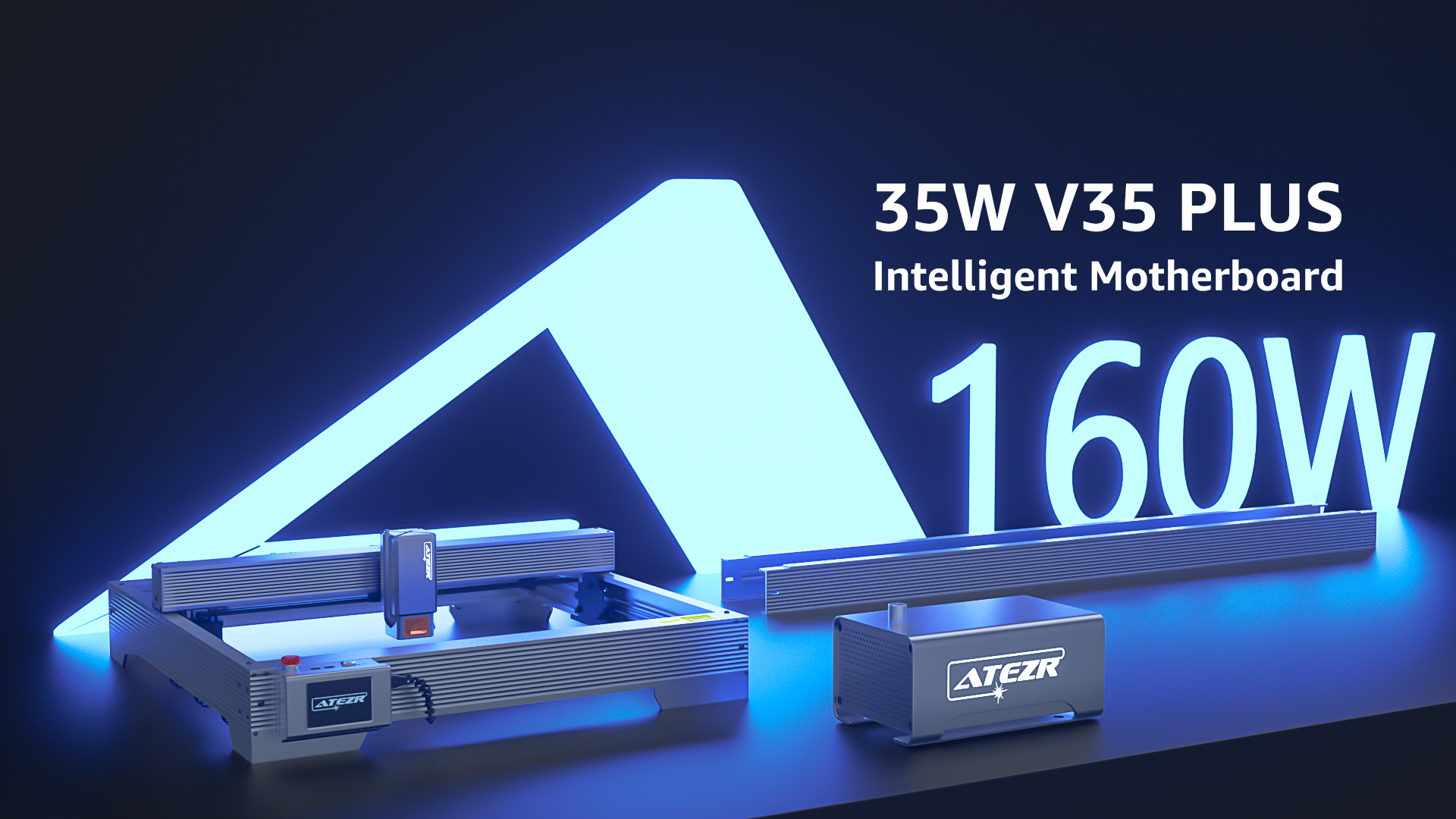

Machine Power

160W

Laser Module Output Power

34-36W

Spot Size

0.06mm*0.1mm

Engraving Accuracy

0.01mm

Laser Focal Length

40mm

Laser Wave

455±5nm

Focusing method

Fixed focus lever without focusing

Operating Systems

Windows/macOS/Android/iOS

Control Software

LaserGRBL/LightBurn

File Type(s)

SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc.

Connecting Interfaces

USB/Wi-Fi/TF Card

Motherboard

32-Bit Control Board With Wifi

Offline Display Screen

3.5-Inch Color Touch Screen

Basic Specs

Power Supply

International standard power input: 100-240V AC, 50/60HZ output: 24V*5A

Machine Net Weight

8.78kg

Packing Weight

17.7kg

Equipment Size

644mm*680mm*168mm

Packing Size

743mm*503mm*155mm

Certification

CE/FCC/RoHS/FDA

Protection

Laser Protection Cover

To prevent pets from touching and keeping them safe, a laser protection cover is designed, and no need for additional protective glasses.

Limit Switch

X, Y-Axis Hardware Limit Switch

Emergency Button

In the event of an accident (such as fire, machine stuck, etc.), It Is very convenient to cut off the power of the machine source.

Reset Button

One-Key restart of the machine can be realized.

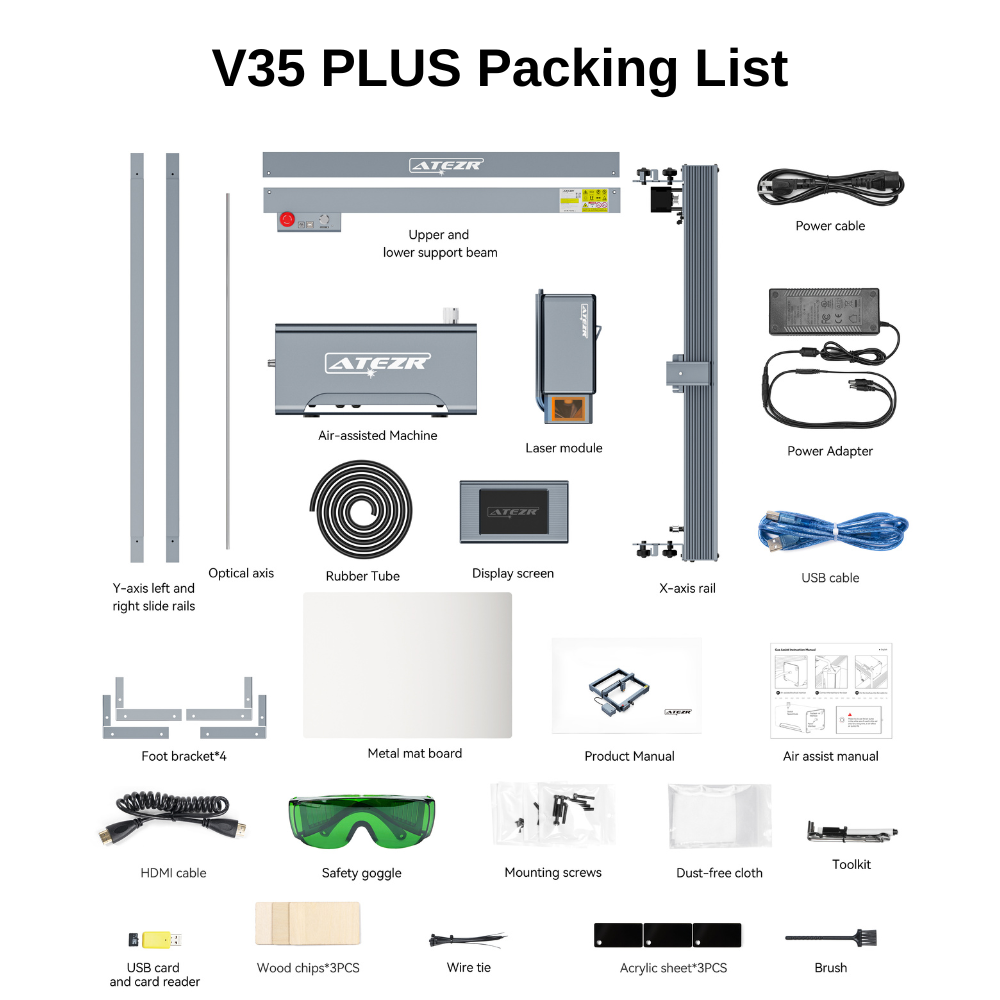

Acessories

Air Assist

The Machine comes standard with an air assist nozzle set and air pump.

Offline Display Screen

The machine comes standard with an offline engraving display screen.

Extension Kit

The machine comes standard with an Extension Kit.

Roller Support

Optional roller kit to achieve cylinder engraving.

Honeycomb Panel

Optional honeycomb panel to protect the workbench and laser module.
