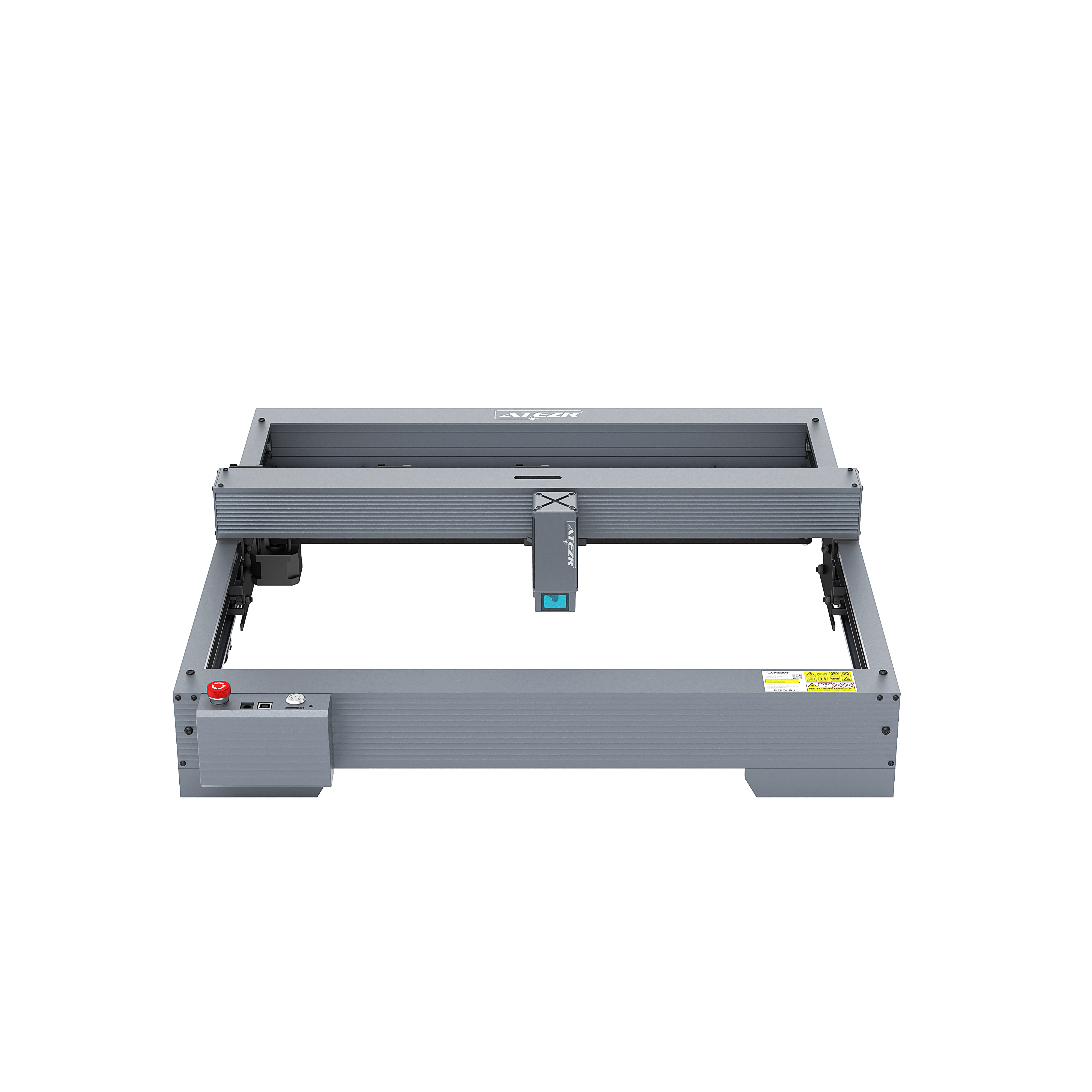

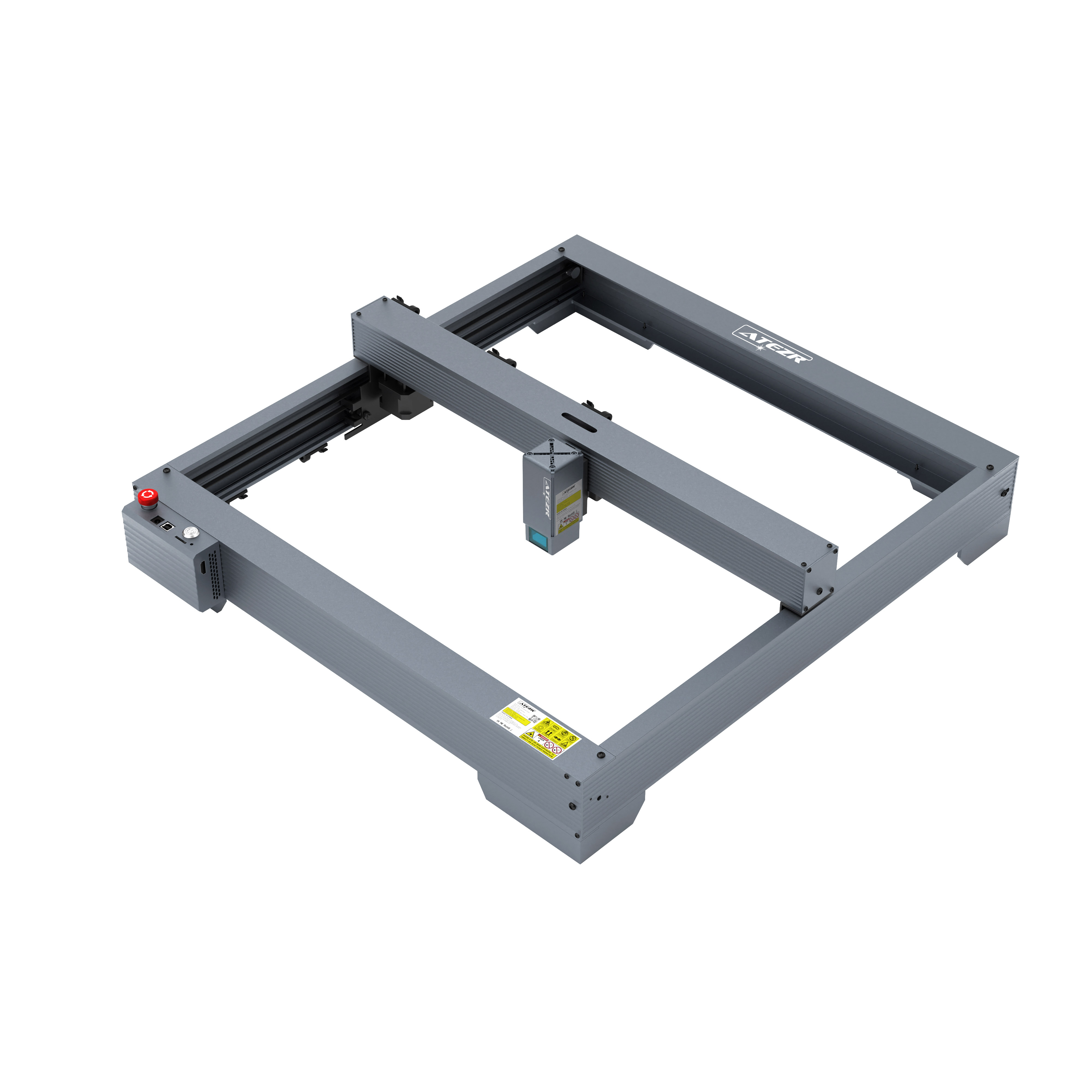

ATEZR P5 5W Laser Engraving Machine [Pre-oreder]

Home / ATEZR P5 5W Laser Engraving Machine

ATEZR P5 5W Laser Engraving Machine

🔥 $279.99 Get an Engraving finer & Large working area laser engraver! ➤ Ultra-fine laser focal area is reduced to 0.06*0.06mm ➤ Precision and speed: Create intricate designs with fast turnaround times ➤ Affordable option: Get professional-level engraving capabilities without breaking the bank ➤ Beginner-friendly: Easy-to-use software and user-friendly suitable for beginners and professionals

$279.99 USD $429.99 USD

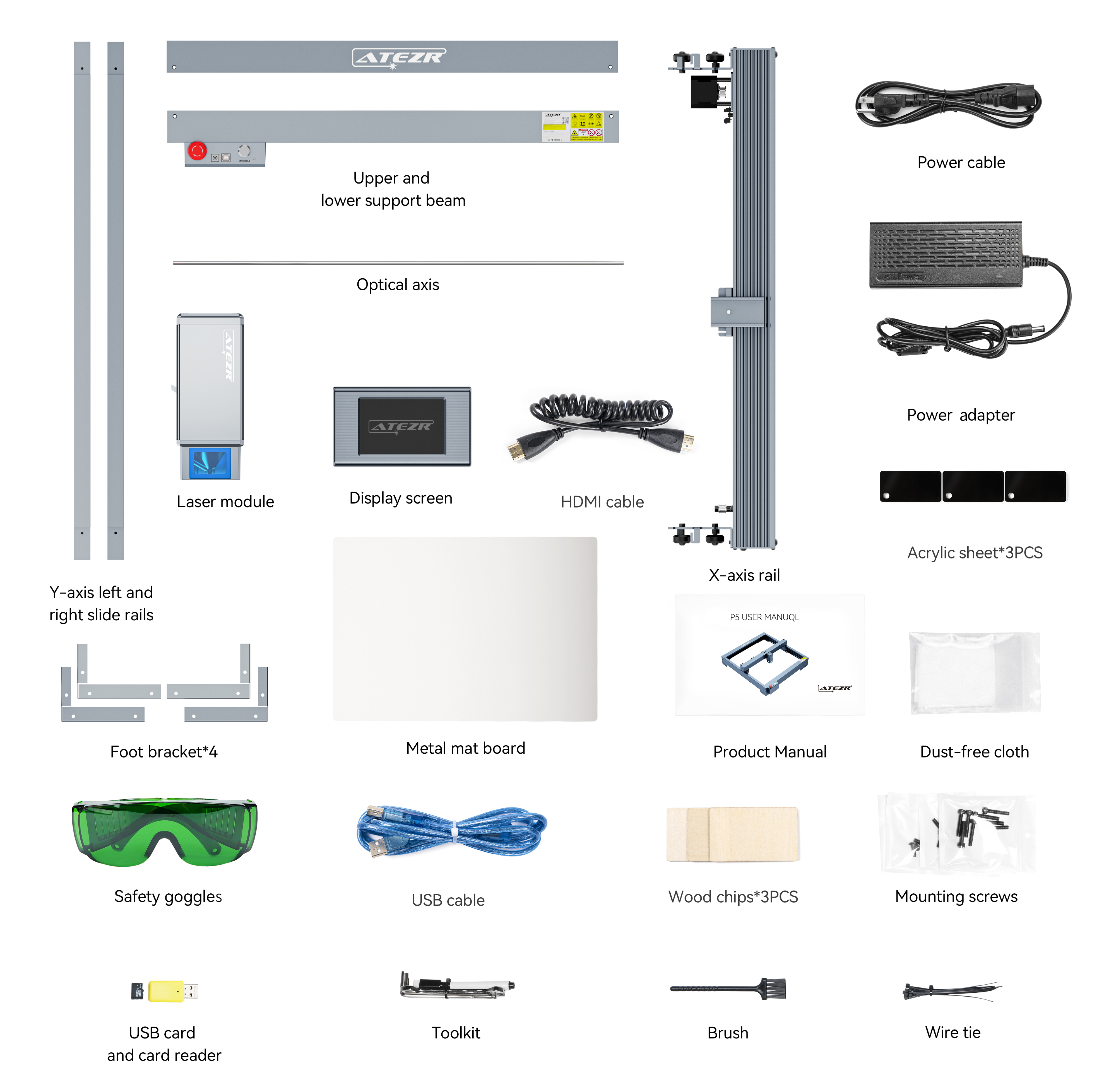

Atezr P5 is a laser engraving machine that offers a large work area and decent features. The product includes everything you need to start your maker journey:

More Precise Engraving - Smaller laser focus (from 0.15*0.15mm to 0.06*0.06mm) makes the smallest engraving line reduce to 0.01mm due to compressed spot tech.
100% Duplicate and Reprint Your Design - Built-in 256-bit color scale, which makes the engraving work more refined and has a higher contrast, so that your engraving is not only black.
Large Engraving Area - A large working area of 430*430 mm ( 17*17inch ), more than the size of A3 paper, allows you to engrave more patterns at once. Easy to use and more efficient.
Fast Moving Laser Modules - The movement speeds up to 24800mm/min, which perfectly reproduces your work in a short time.

Overview

Features

Specs

Review

Overview

Entry Level

Finer engraving and strong cutting

As a beginner contacting a laser engraving machine, the most cost-effective machine of the P5 has the finest engraving effect, in addition to which it can cut thin wood.

Entry Level

Finer engraving and strong cutting

As a beginner contacting a laser engraving machine, the most cost-effective machine of the P5 has the finest engraving effect, in addition to which it can cut thin wood.

6W Laser Module

Finer engraving ability

Atezr adopts the most advanced spot compression technology based on physical optics and innovates new laser coupling methods. The work speed of the 6W Laser Module can be as high as 24800mm/min while cutting various materials.

6W Laser Module

Finer engraving ability

0.06× 0.06 mm Compressed Spot

Engraving accuracy within 0.004 inches

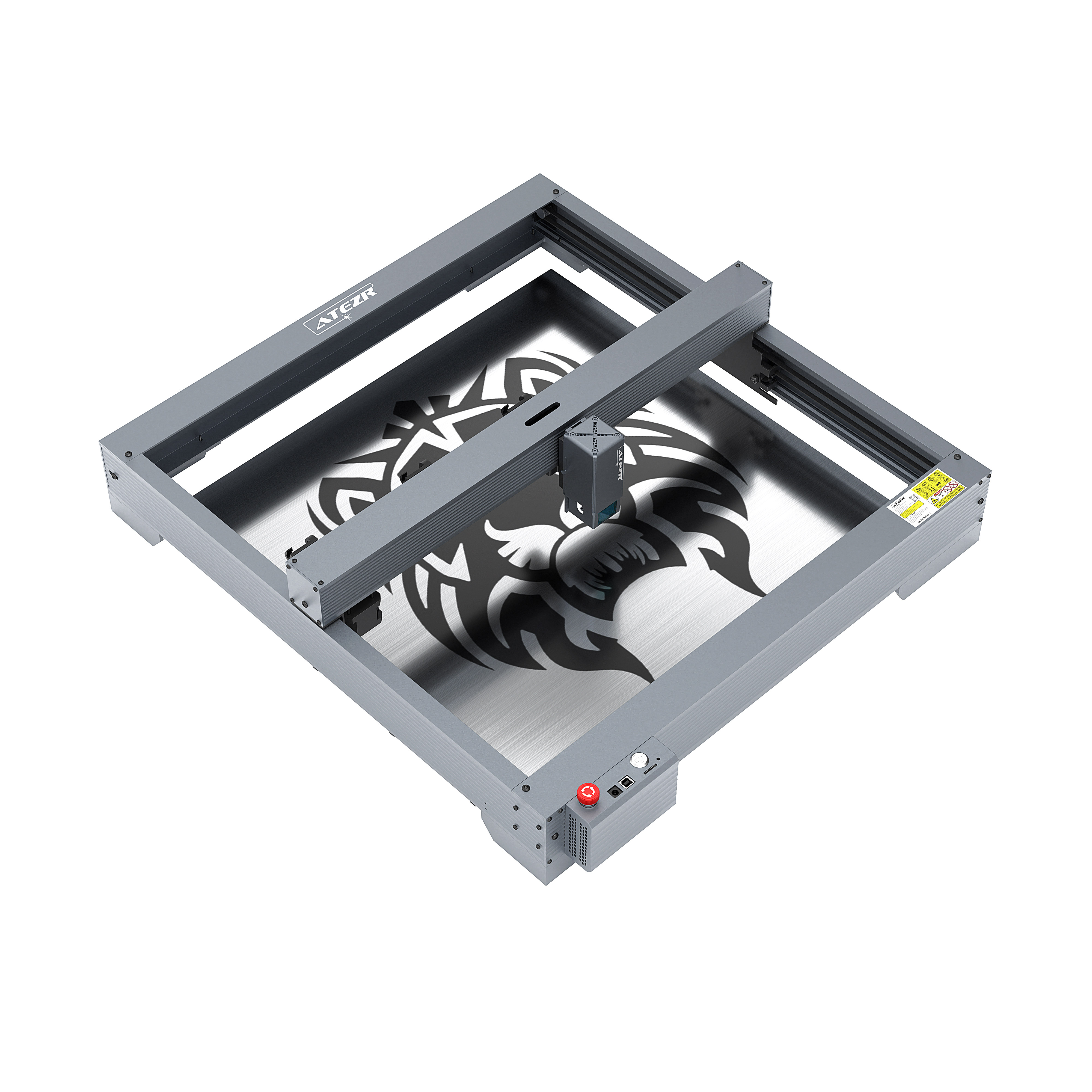

With compressed spot technology, the P5's spot area is reduced to 0.06 × 0.06 mm for fine engraving, with the engraving/cutting accuracy being reduced to within 0.004 inches. The cutting ability is also greatly increased, allowing this machine to engrave metal, stainless steel, ceramics, glass, and more.

0.06× 0.06 mm Compressed Spot

Engraving accuracy within 0.004 inches

24800MM/min

Performance increased by 40%–80%

Atezr constantly researches and develops laser technology to apply an upgraded algorithm to its machines. Thanks to this dedicated work, the maximum speed of P5 is 24,800 mm/min.

With movement precision within 0.01 mm, Atezr speeds up the engraving and cutting process, improves efficiency by 40%–80% compared to other models, and lets users quickly obtain their finished product.

24800MM/min

Performance increased by 40%–80%

Atezr constantly researches and develops laser technology to apply an upgraded algorithm to its machines. Thanks to this dedicated work, the maximum speed of P5 is 24,800 mm/min.

Atezr Laser App Functionality

Beginner-friendly app controls

Atezr machines have built-in Wi-Fi connectivity as well as standard TF card compatibility. The Atezr team developed the Atezr Laser app to take full advantage of these functions, allowing creators to use the mobile app to create new works remotely. This makes it easier for novices to operate the P5and enables creativity without limiting users to one place.

Atezr Laser App Functionality

Beginner-friendly app controls

Integral Lead Screw

One-piece body extends machine life

The Atezr P5 adopts an integral lead screw instead of a combined coupling, a stepper motor, and lead screws, which makes the movement of the laser more precise and the coupling more durable. The belt is embedded in the design, which reduces the wear and tear, prolongs service life, and shortens the assembly time of the machine to 20 minutes.

Integral Lead Screw

One-piece body extends machine life

The Most Stable Machine

Supports 200–300 kg loads

Enhanced precision and an extremely stable working frame on an all-metal body make high-resolution engraving and cutting possible at breakneck speeds. Under high-speed operation, the laser head does not vibrate, so no wavy lines are made on your project during the engraving process. The load-bearing capacity of the P5 is 200–300 kg. Not only is it high-quality and durable, but it also consistently provides superior performance and safety measures.

The Most Stable Machine

Supports 200–300 kg loads

430 × 430 mm Workspace

Make large artwork more convenient

The large work area can accommodate various engraving and cutting projects—no need to move your materials!—and makes it easy to work on several projects at one time, which shortens the time required to transform your idea from imagination to reality.

430 × 430 mm Workspace

Make large artwork more convenient

Flame-Retardant Filter Glass

Block UV rays to protect eyes

The Atezr P5’s flame-retardant filter panorama filter cover can filter 97% of ultraviolet rays. Compared to an acrylic filter, which will cause the engraving to burn, extremely easy to melt during machine operation but the glass has better flame-retardant capabilities and is safer to use

Flame-Retardant Filter Glass

Block UV rays to protect eyes

Limit Switches

Precise anti-collision positioning

The X and Y axes’ limit switches can accurately locate the working coordinates of the laser head and update the processing progress in the software in time to prevent the machine from violent collision. Additionally, the X axis eliminates vibration by tightening the synchronous belt. The laser head still maintains 90% power after 30,000 hours of use, which is far longer than other products on the market.

Limit Switches

Precise anti-collision positioning

Metal Sliding Gear

Reduces machine wear to enhance work efficiency

Rather than polyester ammonia and plastic materials, the moving gear of the laser head is made of metal, which minimizes frictional resistance, ensures the smoothness of the gear, and improves work efficiency.
The innovative knob laser allows for 0.01 mm precision adjustment, which is convenient for precise positioning when engraving and cutting items that are oversized or very small. It is also quicker and more convenient to adjust the height of the laser.

Metal Sliding Gear

Reduces machine wear to enhance work efficiency

12th Generation Motherboard

Built-in 256-bit color scale

The P5 was developed in the Atezr laser technology application lab and upgraded with a 12th generation motherboard. With a built-in 256-bit color scale, this model is capable of producing engraving works that are finer in detail and whose contrast level is higher, so your engraving doesn’t have to be only black. Efficient and stable data transmission is ensured through USB and Wi-Fi connection, and thanks to the modular design, you can quickly and easily assemble, disassemble, or change any component.

12th Generation Motherboard

Built-in 256-bit color scale

Generate Income

Make your money with Atezr

The Atezr P5 features a 3.5-inch touchscreen and an intuitive user interface that supports custom profiles, various built-in cases, and multiple languages. Compatible with Windows, macOS, and Linux systems, simply get connected with Wi-Fi, a USB flash drive, or a USB cable (included) to engrave on the go without the constraints of a computer.

Generate Income

Make your money with Atezr

Diverse Software Compatibility

No limits to who can use Atezr products

Atezr is compatible with a range of operating systems, supporting Win XP/7/8/10 as well as macOS and Linux systems, and the supported engraving file formats include NC, BMP, JPG, PNG, DXF, and more.

Diverse Software Compatibility

No limits to who can use Atezr products

Atezr is compatible with a range of operating systems, supporting Win XP/7/8/10 as well as macOS and Linux systems, and the supported engraving file formats include NC, BMP, JPG, PNG, DXF, and more.

Safe-to-Use Design

Exclusive frame design is both safe and beautiful

The built-in design of the main board and electromechanical machinery can prevent dust buildup even in a busy workshop, ensuring that the normal service life of the P5 is longer than any other laser engraving machine on the market and improving safety during operation. This patented design is both safe and beautiful.

Safe-to-Use Design

Exclusive frame design is both safe and beautiful

Unlimited potential, endless creation

Smarter, faster, and more powerful than ever,

The Atezr team got rid of the traditional machine shape, independently designed the appearance of the P5 and combined this with an intelligently researched smart algorithm to create a laser engraver that can release every artist’s full creative potential. Smarter, faster, and more powerful than ever, this new generation of laser engravers has everything you need.

Unlimited potential, endless creation

Smarter, faster, and more powerful than ever,

Features

▲ Product details ▲

The Atzer P5 is a precision device that can both cut and engrave many materials. It's compact, quiet, portable, and handsome enough to sit on your desk while packing an amazing punch for its price. You will be able to cut or engrave with vector graphics, CAD designs, or even photos. Work with the Atzer P5 software bundle offered as part of this campaign or use your favorite program.

1 Laser Module: Compression spot coupling technology

2 Alumiun Frame: Use an integrated lead screw

3 Offline Engraving: Achieve intelligent working (optional)

4 Emergency Button: Protect yourself

5 Power Generator: Provide stable power

6 Filter Panoramic Glass: Filter 97% of the ultraviolet light

Specs

Tech Specs

Model

Atezr P5

Engraving Size

430mm*430mm

Machine Power

40W

Laser Electric Power

25W

Laser Module Output Power

5-7W

Spot Size

0.06mm*0.06mm

Engraving Accuracy

0.01mm

Laser Focal Length

40mm

Laser Wave

455±5nm

Focusing method

Fixed focus lever without focusing

Operating Systems

Windows/macOS/Android/iOS

Control Software

LaserGRBL/LightBurn

File Type(s)

SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc.

Connecting Interfaces

USB/Wi-Fi/TF Card

Motherboard

32-Bit Control Board With Wifi

Offline Display Screen (optional)

3.5-Inch Color Touch Screen

Basic Specs

Power Supply

international standard power input: 100-240V AC, 50/60HZ output: 12V*5A

Machine Net Weight

7.83kg

Packing Weight

9.47kg

Equipment Size

644mm*680mm*168mm

Packing Size

743mm*503mm*155mm

Certification

CE/FCC/RoHS/FDA

Protection

Laser Protection Cover

To prevent small animals from touching and keeping them safe, a laser protection cover is designed, and no need for additional protective glasses.

Limit Switch

X, Y-Axis Hardware Limit Switch

Emergency Button

In the event of an accident (such as fire, machine stuck, etc.), It Is very convenient to cut off the power of the machine source.

Reset Button

One-Key restart of the machine can be realized.

Acessories

Air Assist

Optional an air assist nozzle set and air pump.

Offline Display Screen

Optional standard with an offline engraving display screen.

Roller Support

Optional roller kit to achieve cylinder engraving.

Honeycomb Panel

Optional honeycomb panel to protect the workbench and laser module.
